GOLD Ultra Torque Sockets - torque rating Stamped


Impact Sockets for Ultra High Torque applications specifically for 1" Sq Dr Hydraulic & Pneumatic tools



Available in Metric and Imperial
inhex drivers


Torque Rating Stamped on each socket



Suitable for 1" Square Drive hydraulic, air torque wrenches and nut runners.
Download GOLD Ultra Torque Socket Flyer

See Also:


Tube Impact Sockets
1" Sq Dr Impact Socket Sets



As most torque tooling use a reaction arm, when the socket is too long, or too short, the tool does not sit square on the nut. Thus the socket will be attempting to torque the nut on an angle, without proper nut / socket engagement.
Equally the reaction arm will not "sit square" increasing the risk of the arm wanting to ride up, or slip off the reaction point.
Most manufacturers producing 1" Square Drive torque tools use a reaction arm depth of 85mm.
Some models of Hydraulic torque tools and most nut runner tools use reaction arms fixed in the downward position, typically 85mm.

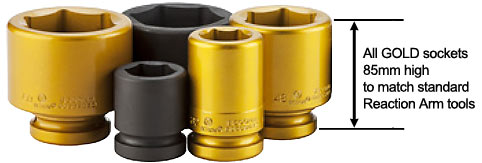

85mm high
GOLD Ultra Torque Sockets are all the same length in keeping with the reaction arm depth.
Assists in helping keep the tool square.




85mm Gold Ultra Torque Sockets
85mm high sockets keep the tool square.





Metric Sizes

- available as single units

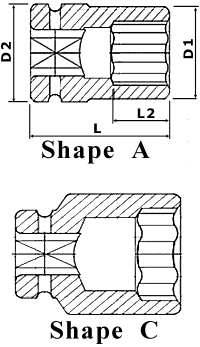

shape diagrame
METRIC Size Sockets  1" Sq Drive only
AF Size
mm
Shape
Type
D2 mm D1 mm L2 mm L mm Nm Rated
Torque
Weight
kg
Order No.
30 A 54 51 21 85 6500 1 6055S030
32 A 54 53 22 85 6500 1 6055S032
35 C 54 57 22 85 6500 1.1 6055S035
36 C 54 58 25 85 6500 1.1 6055S036
38 C 54 61 25 85 7000 1.2 6055S038
41 C 54 64 27 85 7000 1.2 6055S041
43 C 54 68 27 85 7500 1.3 6055S043
46 C 54 72 30 85 7500 1.4 6055S046
48 C 54 74 32 85 7500 1.5 6055S048
50 C 58 77 35 85 8500 1.6 6055S050
52 C 58 79 35 85 8500 1.7 6055S052
54 C 58 82 35 85 8500 1.8 6055S054
55 C 58 83 35 85 8500 1.9 6055S055
60 C 58 89 42 85 8500 2 6055S060
65 C 58 95 42 85 8500 2.2 6055S065
70 C 58 102 42 85 9500 2.4 6055S070


Other sizes available via custom manufactrure.



Imperial sizes

- available as single units

shape diagrame
Imperial Size Sockets   1" Sq Drive only
AF Size
Inches
Shape
Type
D2 mm D1 mm L2 mm L mm Nm Rated Torque Weight
kg
Order No.
1-3/16"
=30mm
A 54 51 21 85 6500 1 6055S030
1-5/16" C 54 55 22 85 6500 1 6005S110
1-3/8" C 54 57 22 85 6500 1.1 6055S035
1-7/16" C 54 58 25 85 6500 1.1 6005S114
1-1/2"
=38mm
C 54 61 25 85 7000 1.2 6055S038
1-5/8" C 54 64 27 85 7000 1.2 6005S120
1-11/16"
 =43mm
C 54 68 27 85 7500 1.3 6055S043
1-13/16"
= 46mm
C 54 72 30 85 7500 1.4 6055S046
1-7/8" C 54 73 32 85 8000 1.5 6005S128
1-15/16" C 58 76 32 85 8500 1.6 6005S130
2" C 58 78 35 85 8500 1.7 6005S200
2-1/16" C 58 79 35 85 8500 1.8 6005S202
2-1/8"
=54mm
C 58 82 35 85 8500 1.8 6055S054
2-3/16" C 58 83 35 85 8500 1.9 6005S206
2-1/4" C 58 86 40 85 8500 1.9 6005S208
2-3/8" C 58 89 42 85 8500 2 6005S212
2-7/16" C 58 91 42 85 8500 2 6005S214
2-1/2" C 58 93 42 85 8500 2.1 6005S216
2-9/16
=65mm
C 58 95 42 85 8500 2.2 6055S065
2-3/4"
=70mm
C 58 102 42 85 9500 2.4 6055S070
inhex drivers

GOLD Ultra Torque impact sockets
- better designed to suit 1” Drive High Torques, Nut Runners and
Multipliers using reaction Arms.

Torque Rating Stamped
on each socket

All UTS Sockets are one length , torque rated ,
and re‐engineered for high powered torque tools.

All are a One piece construction and Impact Rated,
making them suitable for all 1" calibrated Hydraulic, Pneumatic &
Electric Torque tooling plus Impact Guns (Rattle Guns).

Download GOLD Ultra Torque Socket Flyer

Ultra Torque Socket Sets    -   in Steel Box

Impact Socket 1" Sq Dr Set




Also available as a Custom Set!
Choose a mixture of Metric & Imperial sizes to your requirements.

Metric sizes - 12 Pcs in Case

32mm,   36mm,   38mm,   41mm,   43mm,   46mm,   50mm,   52mm,   55mm,   60mm,   65mm,   70mm

Weight: 25 Kg        Part No: IM8MHTS

PDF Brochure

Imperial Size - 13 Pcs in Case

1-5/16",    1-7/16",     1-1/2",    1-5/8"
1-11/16",  1-13/16",    1-7/8,    1-15/16",  2",
2-1/8",      2-3/16,       2-1/4",    2-3/8"

Weight: 26 Kg        Part No: IM8HTS

PDF Brochure

See Standard Impact Socket Sets : 1" Sq Dr Impact Socket Sets








Note: GOLD High Torque Sockets 1” Drive are all 85mm long. Before purchase ensure these sockets suits your tooling or application.
Some torque tool brands & Models may have small variations in Reaction Arm lengths. Always assess applications individually for suitability to a long or short series socket. Check manufacturers recommendations.

Wear safety equipment relevant to your industry.When operatng any powered torque equipment always stay within the manufacturers reaction arm guidelines. When tooling is under load, a hands-off and stand-clear procedure should always be adopted. Never assume components can’t fail.

Think first - One operator per tool - Avoid rushing - Keep Hands Clear - Use common sense - Think Safety before speed!

NOTE: All Impact Guns, Torque Multipliers, Air Nut Runners. Hydraulic Torque Wrenches & all other high-torque Tools must always use thick-wall Impact Sockets, with preference for 6 Point
