Product Sales



Lokrite Safety Backup Wrench

- Hire & Sale



Hands Free Back-up Nut for High Torque applications.


Lokrite Saefty Backup Nut



No Pinch Points - reduces Hand Injuries
Magnet grip holds Backup Wrench in position.

Sizes

- Imperial
1-1/4” to 6-1/8”
Other sizes on request

Download LOKRITE Flyer

Designed to hold back applied torque, the Lokrite hands-free back up wrench is held in place via a magnetic system.
It is easy to remove once the torque has been applied and causes only minimal damage to coatings.
All units are load rated and ideal for non-spark environments.


line

Video Examples



Video player is Loading Lokrite Demonstration


Using a Lokrite Backup Wrench Demo

Demonstration of using a Lockrite Safety Backup on a typical pipe Flange - easy hands free process

Air Nut Runner used is a RAD 25GX.

Loading the player ..


Vertical Use - magnetic hold Demo
Embeded magnets in the Lockrite Backup Wrench hold the Backup Unit in place, making it Hands Free for safe single person pipe Flange bolting application.

Pneumatic Torque Wrench used is a RAD 25GX.





LOKRITE SAFETY BACKUP Wrench

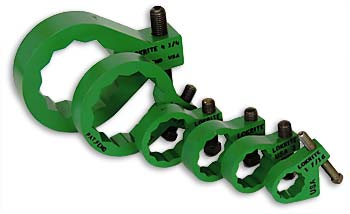

set of sizes backup nutAll Lokrite Backup Wrench contains magnets specialty embedded in one side, that GRIPS to a steel surface thus a true "Hands Free" device and PINCH POINT FREE for any application.

Simple Quick Release bolt allows easy removal with a half-turn - see VIDEO below

Lokrite backup wrenches are perfect for areas that require Non-Striking & Non-Sparking torque applications. Also hold rusted nuts for difficult breakout applications too!

Since you won't need a hammer to get them off your flange, there will be less paint damage to your flange and pipe.

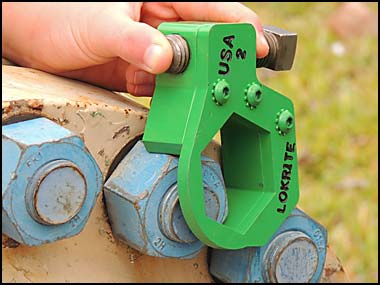

Open Ended Backup Nut


Opened Ended Lokrite


The Opened Ended Lokrite Backup ease fitting in tight spaces, where even access for a open-ended or ring spanner has difficulties.

The Lokrite open-end Backup Wrench with locking cleat is the newest tool in the Lokrite family. It offers a low radius nose, and a low height clearance option, for when a standard wrench wont fit and hold.

Like the standard Box End Lokrite Backup Wrenches, it will hold in place by the magnets embedded into the tool, so they can always be used as "Hands Free"

For an area with height restrictions the locking cleat can be slid between the top of the stud or nut easily and under/beside the obstruction that is obstructing it. Areas of restriction are inherent safety concerns that come with a standard open end wrench and the open-ended Lokrite Backup Nut address and overcome this issue.


Box End Lokrite
Box End -
Standard Type

Model
Number
Nut Size AF
Imperial
Stud Size Torque Max
in Ft Lbs
LR -1-1/4 1-1/4"  3/4 2320
LR -1-7/16 1-7/16"  7/8 2486
LR -1-5/8 1-5/8" 1    3480
LR -1-13/16 1-13/16" 1 1/8 3500
LR - 2 2" 1 1/4 4030
LR -2-3/16 2-3/16" 1 3/8 4200
LR -2-3/8 2-3/8" 1 1/2 4250
LR -2-9/16 2-9/16" 1 5/8 4530
LR -2- 3/4 2-3/4" 1 3/4 5525
LR-2-15/16 2-15/16" 1 7/8 6240
LR -3-1/8 3-1/8" 2    7016
LR -3-1/2 3-1/2" 2 1/4 7150
LR -3-7/8 3-7/8" 2 1/2 8780
LR -4-1/4 4-1/4" 2 3/4 23,706
LR -4-5/8 4-5/8" 3    26,890
LR -5    5" 3 1/4 26,900
LR -5-3/8 5-3/8" 3 1/2 26,900
LR -5-3/4 5-3/4" 3 3/4 26,900
LR -6-1/8 6-1/8" 4    26,900

Open Ended Lokrite

Open Ended Type

Model
Number
Nut Size AF
Imperial
Stud Size Torque Max
in Ft Lbs
LROE-1-1/4 1-1/4"  3/4 1624
LROE-1-7/16 1-7/16"  7/8 1740
LROE-1-5/8 1-5/8" 1    2436
LROE-1-13/16 1-13/16" 1 1/8 2450
LROE- 2 2" 1 1/4 2821
LROE-2-3/16 2-3/16" 1 3/8 2940
LROE-2-3/8 2-3/8" 1 1/2 2975
LROE-2-9/16 2-9/16" 1 5/8 3170
LROE-2- 3/4 2-3/4" 1 3/4 3867
LROE-2-15/16 2-15/16" 1 7/8 4368
LROE-3-1/8 3-1/8" 2    4900
LROE-3-1/2 3-1/2" 2 1/4 5000
LROE-3-7/8 3-7/8" 2 1/2 6140
LROE-4-1/4 4-1/4" 2 3/4 16.500
LROE-4-5/8 4-5/8" 3    18,800
LROE-5    5" 3 1/4 18,800
LROE-5-3/8 5-3/8" 3 1/2 18,800
LROE-5-3/4 5-3/4" 3 3/4 18,800
LROE-6-1/8 6-1/8" 4    18,800


Also in Standard Metric Sizes -






Custom Fabricated in any size
Custom Made to suit your Flange Stud Centres

  • Zero Pinch Points
  • Quick Release
  • Fits in Tight Spaces
  • Non-Sparking Area safe
  • Promotes General safety with Torque Wrenches
  • Reduces Hand Injuries

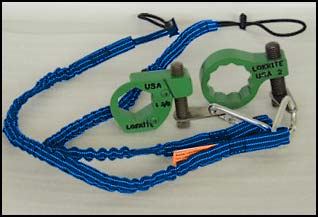

Lanyard examples

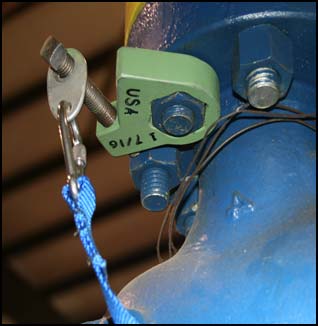

Lokrite Lanyard example






Lanyard attached for fall protection


Lanyard with Stainless Steel clip fits all sizes.



IMPACT SOCKET SETS

Impact Set 3/4" std
10pc 3/4" Sq Drive Impact Socket Set

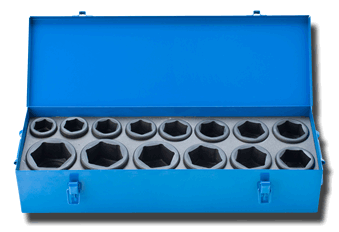

1" socket set impact for torque wrench
1" Custom Impact Socket Set

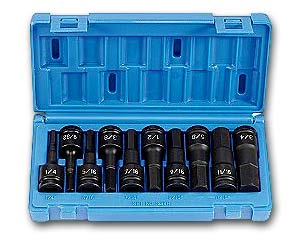

Hex driver set for Nut runners
Hex Driver Socket sets



Having the Correct Square Drive Impact socket plays a critical role in running Shutdowns Maintenance.    See our 1" Custom Socket Sets plus Hex Driver Socket sets
If the wrong size Impact Sockets is holding up the work flow, avoid compromise, use only High Torque Impact Sockets for hydraulic torque tooling and high torque applications. Deep Sockets offer addition length to contain extended threads.
Impact Sockets from 3/4" to 6" AF ( AF= across flats).

Use only high torque Impact Sockets for Air Nut Runners, Torque Multipliers and Hydraulic Torque Wrenches. Large size Impact sockets now available for Hire & Sale.
