Nose Extension


RAD Pneumatic nutrunner: speed up maintenance & shutdowns on high torque applications. Delivered Aust Wide	Download Nose Extension Flyer	Download Wheel Nut Solutions with Nose Extensions

NutRunner Nose Extension Selection Chart

Tool Models	Extension	A	B	C	D
RAD 1400NG	15"	140mm	406mm	72mm	92mm
RAD 1800NG	15"	140mm	406mm	72mm	92mm
RAD-2000	15"	140mm	410mm	72mm	92mm
RAD-30	15"	140mm	401mm	72mm	92mm

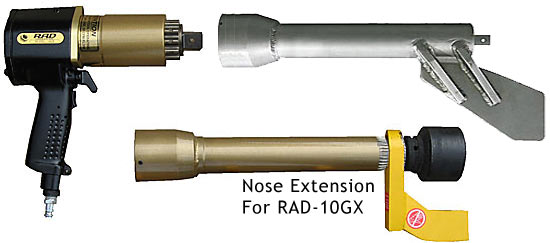

RAD 10GX	15 "	N/A	400mm	63mm	N/A
RAD 25GX	15"	140mm	410mm	72mm	92mm
RAD 34GX	15"	140mm	410mm	80mm	92mm

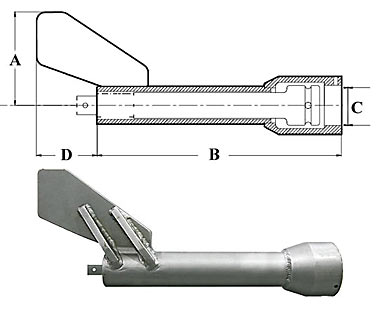

Nose Extension diagram

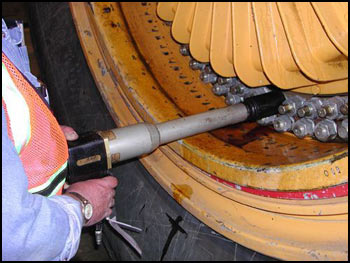

RAD Torque Rear wheel application

RAD Nose Extension are engineered to enable the use of pistol grip nutrunner tools into difficult to access areas where a standard tool would not normally fit.
The extension remove the need to use impact extension shafts which can put the operator in danger and subject the tool to excess side loading.
The extension offer a variety of reaction arms to ensure our tools are achieving 100% of their performance.

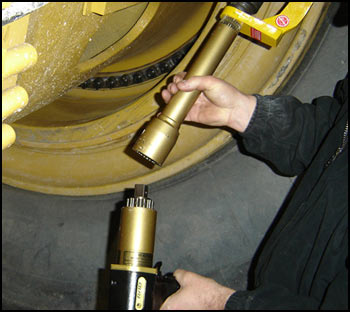

The Nose Extension engages directly with the spline of the Tool, thus removing the movement generally associated with extension bars. This movement is due to the loose fitting on the square drive. The fitting to the Tools spline is a finely machined spline fit, with close tolerances, thus holding the tool rigid.
Adding to the stability of the Tool, the reaction arm is at the socket end of the nose extension. This means all the forces involved in tightening and breakout are held closely together. No reaction forces are taken up by the Operator. An important factor when dealing with potentially 200 bolts on the large earthmoving equipment wheel. Custom reaction arms are often created to fit particular models of Earthmoving Wheel. By extending the nose but keeping the Reaction Arm next to the socket, all the forces are held close together, thus the safety of the Operator is assured.

RAD Reaction Bars & Custom fittings
for every high torque wrench application - see more

ALL RAD Nutrunner Tools include
AIR REGULATOR & LUBRICATOR, hoses, & torque charts, in a weatherproof shipping case.
Delivered Australia Wide

Your High Torque Solution
all in one box!

Download Regulator & Cradle

RAD Air wrench

See the full range of versatile single speed Nutrunner and
2 Speed NutRunner models.

RAD 18V Battery Air torque wrench

See Battery Nut Runner for the ultimate portable High Torque Wrench.
